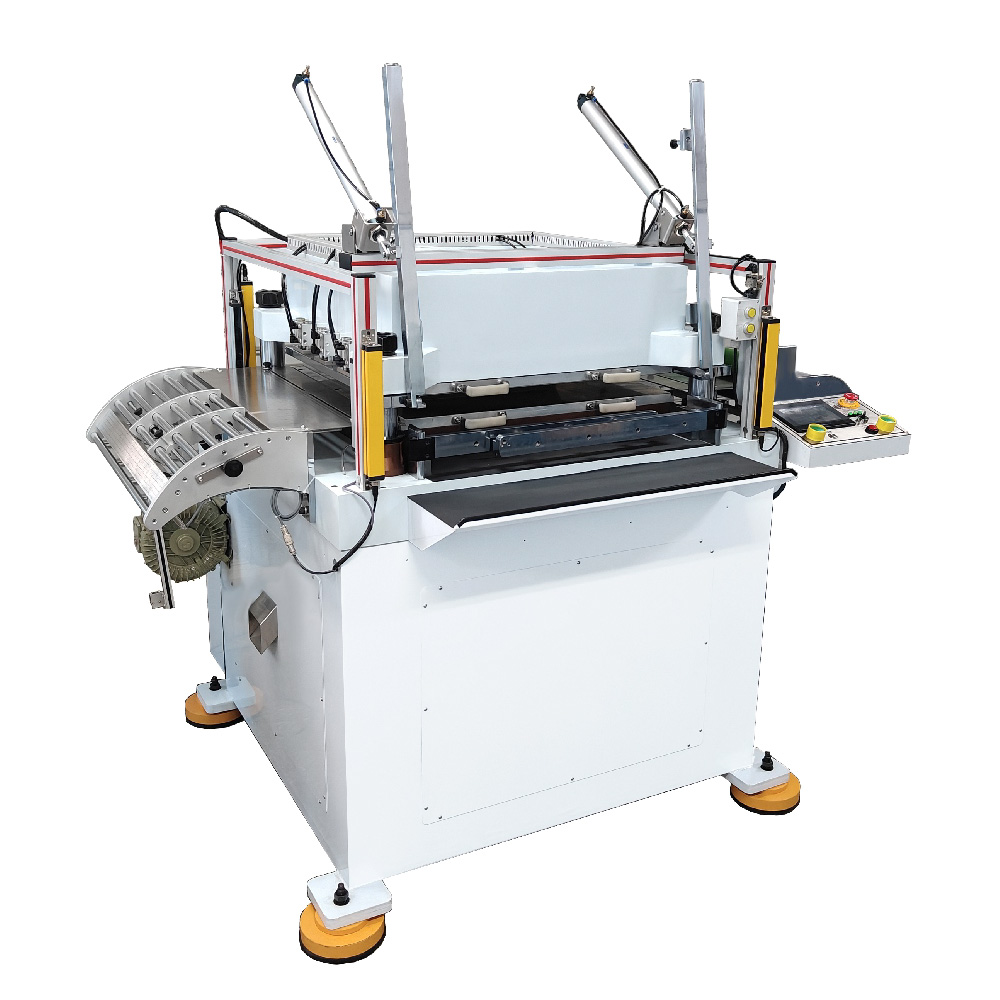

Precision die-cutting machine CUT750
Standard impulse:26T
Knife mold size: 750x750mm
Die cutting speed: 120 times / min
Mold height: 90~120mm
Cutting stroke:30mm
Voltage regulation:NC
Voltage accuracy:0.01mm
Mould type:Laser mold, etching engraving mold, metal mold, etc.
Punching clutch:Composite air pressure
Embellish: Automatic oil supply
Total work rate:13.5Kw 3P 380V
WeightSize: 4800Kg\L2000xW1580xH2000mm
Knife mold size: 750x750mm
Die cutting speed: 120 times / min
Mold height: 90~120mm
Cutting stroke:30mm
Voltage regulation:NC
Voltage accuracy:0.01mm
Mould type:Laser mold, etching engraving mold, metal mold, etc.
Punching clutch:Composite air pressure
Embellish: Automatic oil supply
Total work rate:13.5Kw 3P 380V
WeightSize: 4800Kg\L2000xW1580xH2000mm
Products details
Suitable for Car battery graphite heatsink, notebook computer, insulation sheet big momentun, fine, many small die-cutting!products.
Main parts:
Delta Servo Motor\ MITSUBISHI PLC\ MITSUBISHIY Inverter\ Japanese NSK Bearing\ Keyence Sensor\
MISUMI Standard Parts\ WEINTEK Touch Screen\ Japanese Datong Spring\AirTAC Solenoid Valve\ Taiwan-made Safety Light Curtain\ Taiwan Relay, etc
