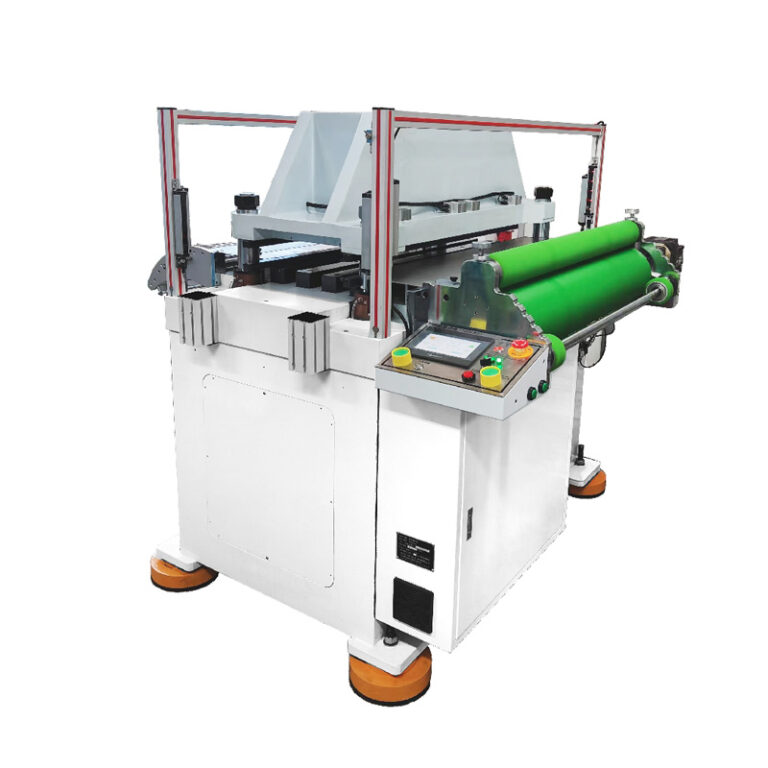

High speed die cutting machine Type1100
Standard impulse:20T
Knife mold size: 1100x350mm
Die cutting speed:<120times/min
Mold height: 90~120mm
Cutting stroke:3 0mm
Voltage regulation:NC
Voltage accuracy: 0.01mm
Mould type: Laser mold, etching engraving mold, metal mold, etc.
Punching clutch:Composite air pressure
Embellish: Automatic oil supply
Total work rate: 13.5Kw 3P 380V
Weight\Size:4500Kg\L2100xW1700xH1750mm
Knife mold size: 1100x350mm
Die cutting speed:<120times/min
Mold height: 90~120mm
Cutting stroke:3 0mm
Voltage regulation:NC
Voltage accuracy: 0.01mm
Mould type: Laser mold, etching engraving mold, metal mold, etc.
Punching clutch:Composite air pressure
Embellish: Automatic oil supply
Total work rate: 13.5Kw 3P 380V
Weight\Size:4500Kg\L2100xW1700xH1750mm
Products details
Suitable for Car battery graphite heatsink, notebook computer, insulation sheet big momentun, fine, many small die-cutting products.
Delta Servo Motor\ MITSUBISHI PLC\MITSUBISHIY Inverter\Japanese NSK Bearing\ Keyence Sensor\MISUMI Standard Parts\ WEINTEK Touch Screen\Japanese Datong Spring\AirTAC Solenoid Valve\Taiwan-made Safety Light Curtain\Taiwan Relay, etc
